4mm Aperture CIE Lab Precision Colorimeter 3NH NR110

Brand Name : 3nh

Model Number : NR110

Certification : CE, TUV, FCC, ISO9001, RohS

Place of Origin : Shenzhen, China

MOQ : 1 Unit

Price : Discuss

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1000 Units per Month

Delivery Time : 1-3 work days

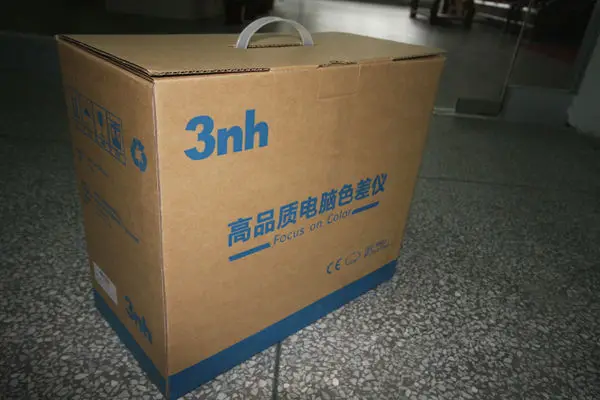

Packaging Details : 46*25*38cm, 4.5kg, Alluminum Box

Measuring Aperture : Φ4mm

Repeatability : within ΔE*ab 0.08

Illuminating/Viewing Geometry : 8° / d

Measuring Range : L: 0 to 100

Illuminant Device : LED blue light excitation

Storage : 100 pcs standard samples; 20000 pcs test samples

Color Difference Formula : ΔE*ab; ΔL*ab; ΔE*C*H

Measuring Conditions : CIE 10° Standard Observer

Contact Now

Precision Colorimeter 3NH NR110 with 4mm aperture CIE lab color space

Product Description

1 4mm aperture
2 Accuracy: delta E 0.08
3 Illuminant: D65
4 Li-ion battery

3nh Brand Color Meter / Colorimeter Price Manufactuer Features

1. Double Locating: Illuminating locating and cross locating

2. Double Measurement End Face: Large area measurement and small area measurement

3. New Integrating Sphere Design: More stable measurement

4. Equipped with Rechargeable High-Capacity Li-ion Battery

3nh Brand Color Meter / Colorimeter Price Manufactuer Specifications

Illuminating/Viewing Geometry	8/d
Measuring Aperture	Φ4mm
Detector	Silicon photoelectric diode
Locating	Illuminating Locating/Cross Locating
Measurement End Face	Large stable end-face and small concave-convex end-face
Color Space	CIELabCh* CIELab* CIEXYZ
Color Difference Formula	delta Eab delta Lab ECh*
Light Source	D65
Light Source Device	LED blue light excitation
Errors Between Each Equipment	≤0.80 delta E*ab
Storage	100pcs standards 20000pcs samples
Repeatability	Standard deviation within E*ab 0.08 Average of 30 measurements of standard white plate
Language	English/Chinese
Weight	450g
Dimension	205×67×80 mm
Power source	Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life	3 years, more than 1.6 million measurements
Charging Time	8 hours--100% electricity
PC Software	CQCS3 Software
Printer (optional)	Miniature thermal printer

3nh Brand Color Meter / Colorimeter Price Manufactuer

4mm Aperture CIE Lab Precision Colorimeter 3NH NR110

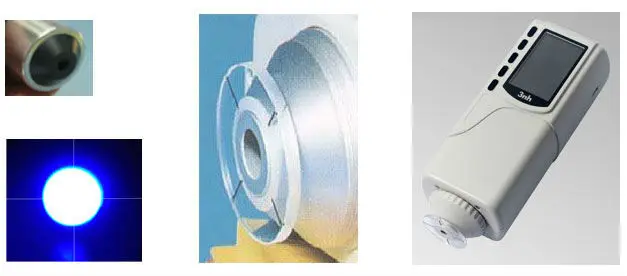

Illuminating Locating, Cross Locating, Large Stable End Face, Small Concave-Convex End Face. (for NR110 Precise Colorimeter )

4mm Aperture CIE Lab Precision Colorimeter 3NH NR110

Certifications

ISO 9001, CE, ROHS, FCC, TUV, SCM CERTIFICATES

4mm Aperture CIE Lab Precision Colorimeter 3NH NR110

CIE Lab Precision Colorimeter

4mm Aperture Lab Precision Colorimeter

3NH NR110 Colorimeter

4mm Aperture CIE Lab Precision Colorimeter 3NH NR110 Images
